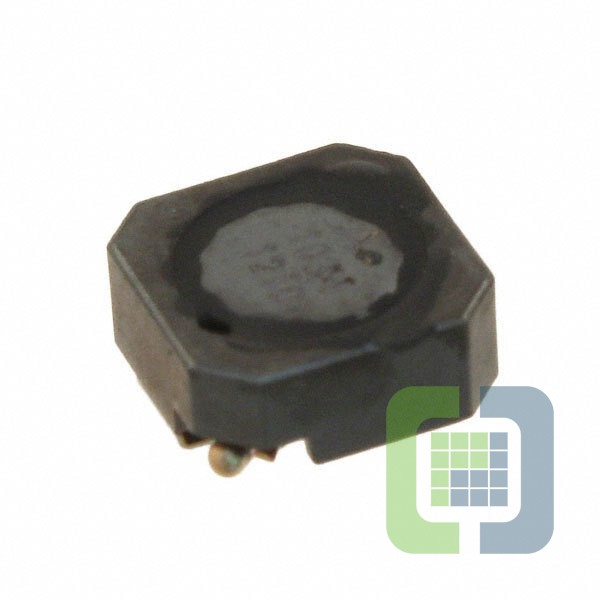

B82462G2222M
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 2.3A 32 MOHM SMD
- CategoryFixed Inductors
- Datasheet B82462G2222M Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:B82462G2
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):2.3 A
- Current - Saturation (Isat):2.55A
- Shielding:Shielded
- DC Resistance (DCR):32mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:100kHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 150°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.248" L x 0.248" W (6.30mm x 6.30mm)
- Height - Seated (Max):0.098" (2.50mm)
