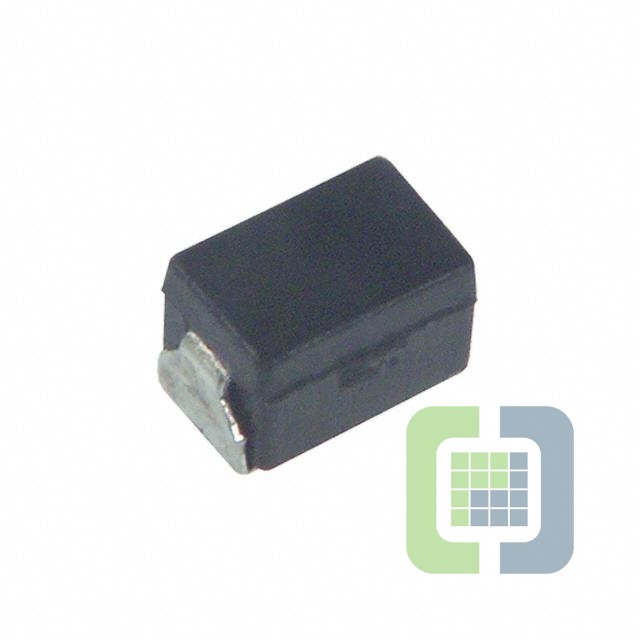

ELJ-PC2R2MF3

Technical Details

• Series:PC
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:2.2 µH
• Tolerance:±20%
• Current Rating (Amps):700 mA
• Current - Saturation (Isat):330mA
• Shielding:Unshielded
• DC Resistance (DCR):190mOhm

• Q @ Freq:-
• Frequency - Self Resonant:95MHz
• Ratings:-
• Operating Temperature:-20°C ~ 85°C
• Inductance Frequency - Test:1 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:1008 (2520 Metric)
• Supplier Device Package:1008 (2520 Metric)
• Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
• Height - Seated (Max):0.071" (1.80mm)
