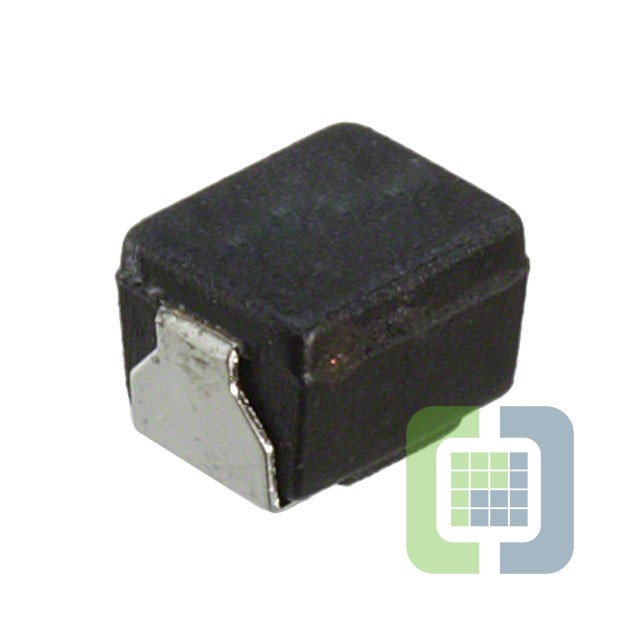

ELJ-LA4R7KF
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 4.7UH 560MA 350 MOHM
- CategoryFixed Inductors
- Datasheet ELJ-LA4R7KF Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:LA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:4.7 µH
- Tolerance:±10%
- Current Rating (Amps):560 mA
- Current - Saturation (Isat):900mA
- Shielding:Unshielded
- DC Resistance (DCR):350mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-20°C ~ 85°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1210 (3225 Metric)
- Supplier Device Package:-
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.094" (2.40mm)
