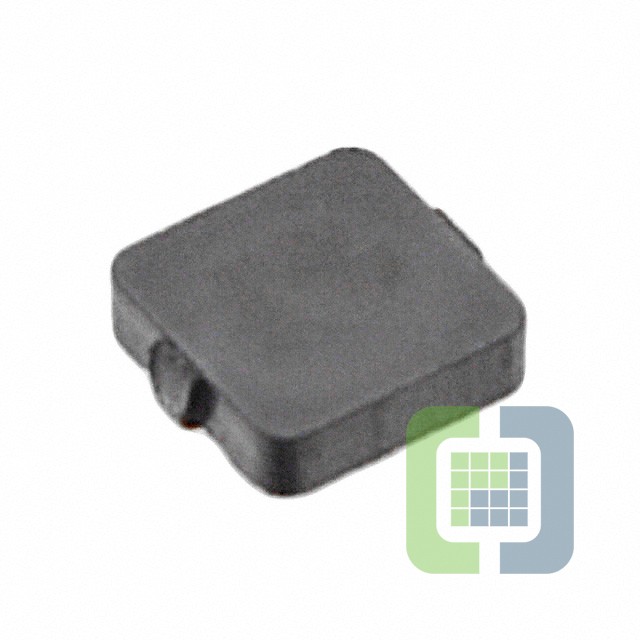

SRP4012-R56M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560NH 5.5A 25 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRP4012-R56M Datasheet
-
ECAD Model
- Share
In Stock: 193
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SRP4012
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Iron
- Inductance:560 nH
- Tolerance:±20%
- Current Rating (Amps):5.5 A
- Current - Saturation (Isat):8A
- Shielding:Shielded
- DC Resistance (DCR):25mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.185" L x 0.157" W (4.70mm x 4.00mm)
- Height - Seated (Max):0.047" (1.20mm)
