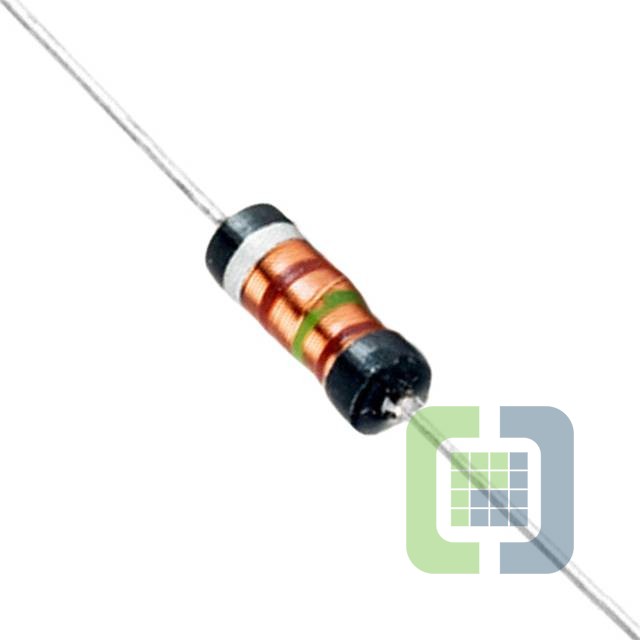

AIAP-01-560K-T
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 56UH 650MA 470 MOHM TH
- CategoryFixed Inductors
- Datasheet AIAP-01-560K-T Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AIAP-01
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:56 µH
- Tolerance:±10%
- Current Rating (Amps):650 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):470mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:5.8MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.130" Dia x 0.360" L (3.30mm x 9.14mm)
- Height - Seated (Max):-
