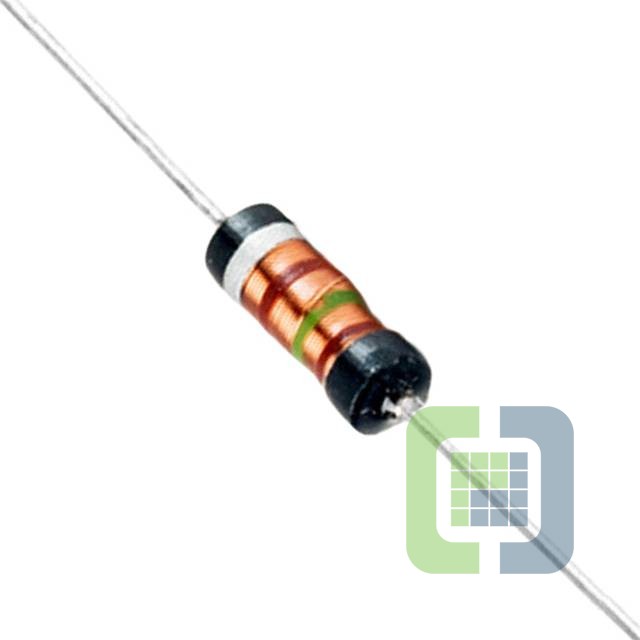

AIAP-01-822K-T

Technical Details

• Series:AIAP-01
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Type:Wirewound
• Material - Core:-
• Inductance:8.2 mH
• Tolerance:±10%
• Current Rating (Amps):54 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):75Ohm Max

• Q @ Freq:-
• Frequency - Self Resonant:290kHz
• Ratings:-
• Operating Temperature:-40°C ~ 105°C
• Inductance Frequency - Test:1 kHz
• Features:-
• Mounting Type:Through Hole
• Package / Case:Axial
• Supplier Device Package:-
• Size / Dimension:0.130" Dia x 0.360" L (3.30mm x 9.14mm)
• Height - Seated (Max):-
