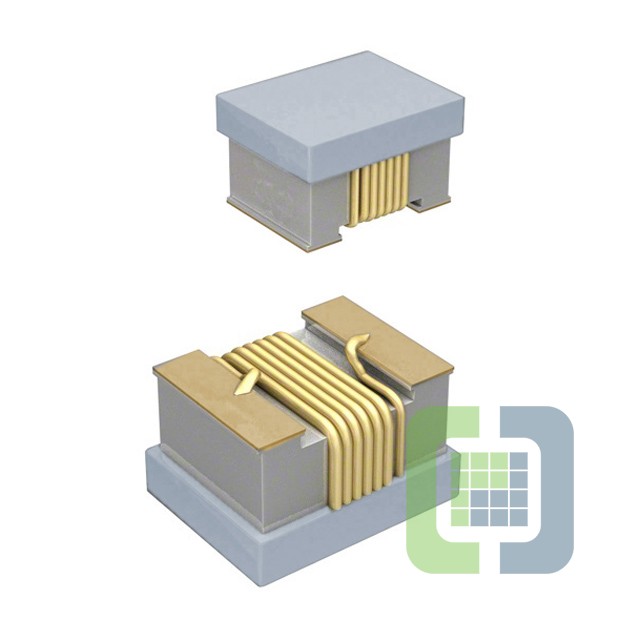

AISM-1812-R47M-T

Technical Details

• Series:AISM-1812
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ferrite
• Inductance:470 nH
• Tolerance:±20%
• Current Rating (Amps):545 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):320mOhm Max

• Q @ Freq:40 @ 25.2MHz
• Frequency - Self Resonant:145MHz
• Ratings:-
• Operating Temperature:-40°C ~ 85°C
• Inductance Frequency - Test:25.2 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:1812 (4532 Metric)
• Supplier Device Package:1812
• Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
• Height - Seated (Max):0.110" (2.80mm)
