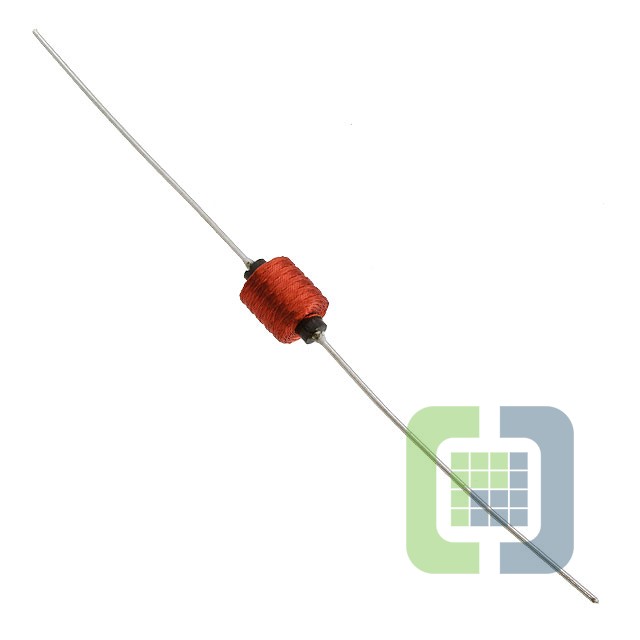

70F563AI-RC
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 5.6MH 46MA 69.6 OHM TH
- CategoryFixed Inductors
- Datasheet 70F563AI-RC Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:70F
- Package:Bulk
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Iron
- Inductance:5.6 mH
- Tolerance:±5%
- Current Rating (Amps):46 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):69.6Ohm Max
- Q @ Freq:53 @ 250kHz
- Frequency - Self Resonant:680kHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:250 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.300" Dia x 0.380" L (7.62mm x 9.65mm)
- Height - Seated (Max):-
