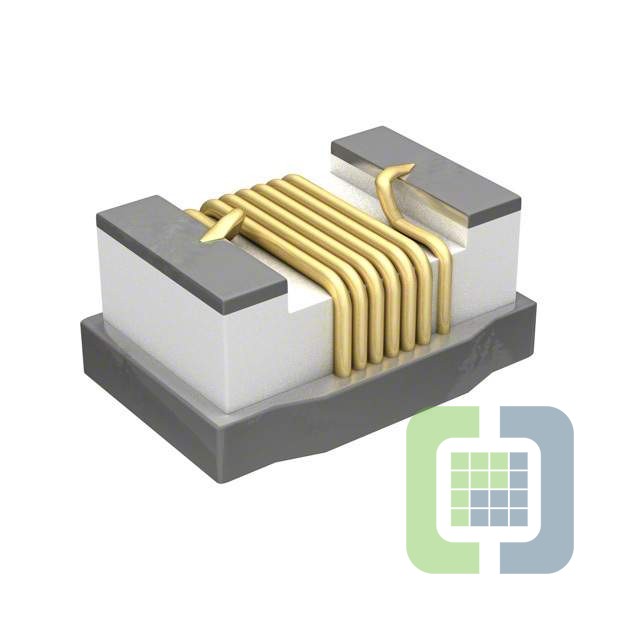

PE-1008CM271KTT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 270NH 500MA 500 MOHM
- CategoryFixed Inductors
- Datasheet PE-1008CM271KTT Datasheet
-
ECAD Model
- Share
In Stock: 111
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:1008CM
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:270 nH
- Tolerance:±10%
- Current Rating (Amps):500 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):500mOhm Max
- Q @ Freq:45 @ 100MHz
- Frequency - Self Resonant:525MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:25 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008 (2520 Metric)
- Size / Dimension:0.115" L x 0.110" W (2.92mm x 2.79mm)
- Height - Seated (Max):0.090" (2.29mm)
