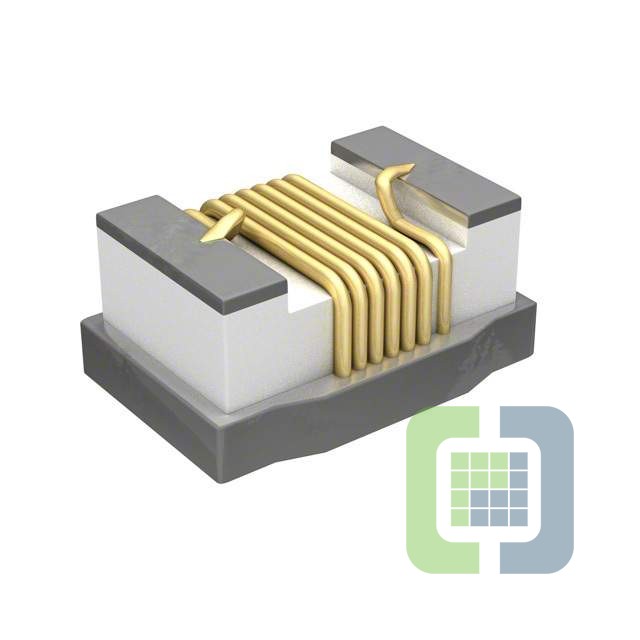

PE-1008CM911KTT

Technical Details

• Series:1008CM
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Type:Wirewound
• Material - Core:Ceramic
• Inductance:910 nH
• Tolerance:±10%
• Current Rating (Amps):200 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):2.1Ohm Max

• Q @ Freq:40 @ 50MHz
• Frequency - Self Resonant:300MHz
• Ratings:-
• Operating Temperature:-40°C ~ 125°C
• Inductance Frequency - Test:25 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:1008 (2520 Metric)
• Supplier Device Package:1008 (2520 Metric)
• Size / Dimension:0.115" L x 0.110" W (2.92mm x 2.79mm)
• Height - Seated (Max):0.090" (2.29mm)
