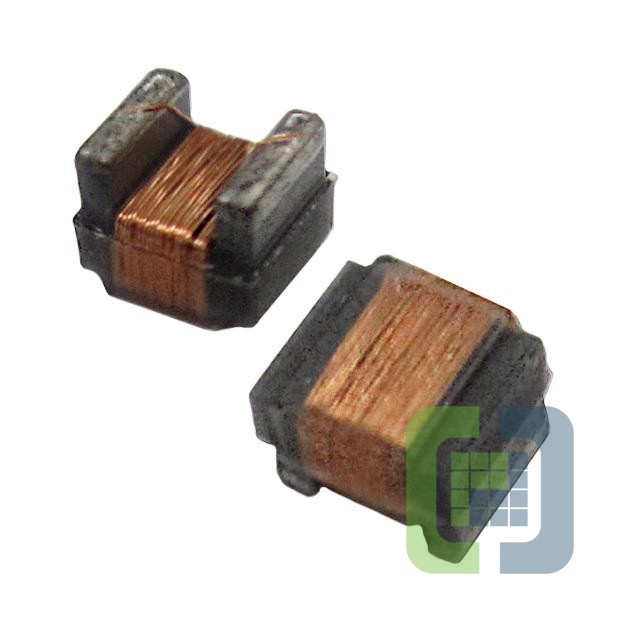

AISC-0805HQ-30NJ-T
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 30NH 1.2A 95 MOHM SMD
- CategoryFixed Inductors
- Datasheet AISC-0805HQ-30NJ-T Datasheet
-
ECAD Model
- Share
In Stock: 105
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AISC-0805HQ
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:30 nH
- Tolerance:±5%
- Current Rating (Amps):1.2 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):95mOhm Max
- Q @ Freq:65 @ 500MHz
- Frequency - Self Resonant:1.95GHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:250 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:0805
- Size / Dimension:0.090" L x 0.068" W (2.29mm x 1.73mm)
- Height - Seated (Max):0.060" (1.52mm)
