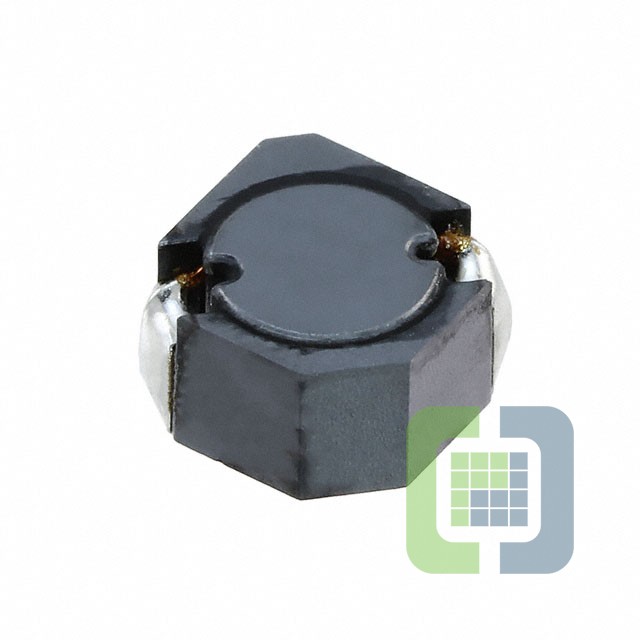

ELL-ATP101MB
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100UH 1.2A 180MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 160
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:P
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:-
- Inductance:100 µH
- Tolerance:±20%
- Current Rating (Amps):1.2 A
- Current - Saturation (Isat):1A
- Shielding:Shielded
- DC Resistance (DCR):180mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard, Corner Terminals
- Supplier Device Package:-
- Size / Dimension:0.394" L x 0.394" W (10.00mm x 10.00mm)
- Height - Seated (Max):0.177" (4.50mm)
Related Products
FIXED IND 1MH 370MA 1.7OHM SMD
Call for price
FIXED IND 12UH 2.9A 25MOHM SMD
Call for price
FIXED IND 120UH 1A 200MOHM SMD
Call for price
FIXED IND 15UH 2.7A 29MOHM SMD
Call for price
FIXED IND 150UH 900MA 250MOHM SM
Call for price
FIXED IND 180UH 750MA 320MOHM SM
Call for price
FIXED IND 1UH 8A 3.6MOHM SMD
Call for price
FIXED IND 1.5UH 7A 4.4MOHM SMD
Call for price
FIXED IND 22UH 2.5A 38MOHM SMD
Call for price

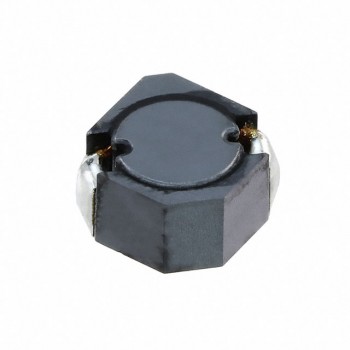

FIXED IND 220UH 700MA 360MOHM SM
