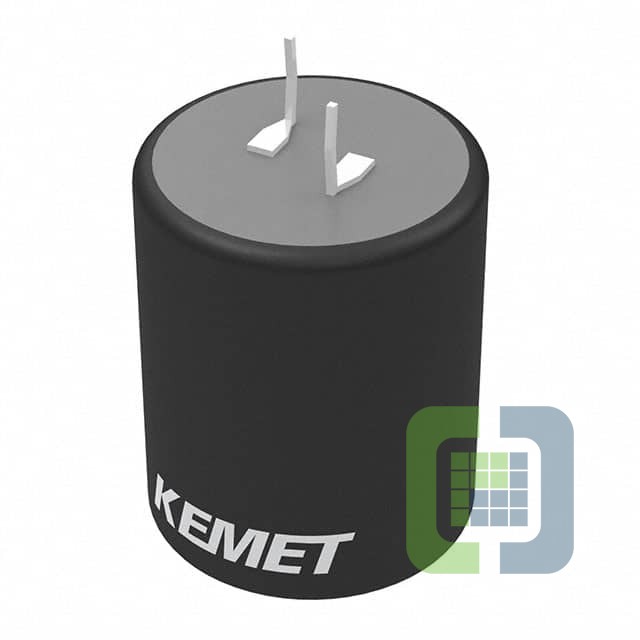

ALC80A392BB040
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSNAP-IN HIGH CV 105C 3900UF 40V
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
- 1$3.12008
- 360$3.12008
Quote It
Technical Details
- Series:ALC80
- Package:Bulk
- Part Status:Active
- Capacitance:3900 µF
- Tolerance:±20%
- Voltage - Rated:40 V
- ESR (Equivalent Series Resistance):134mOhm @ 100Hz
- Lifetime @ Temp.:6000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.26 A @ 100 Hz
- Ripple Current @ High Frequency:4.52 A @ 10 kHz
- Impedance:108 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):1.260" (32.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
