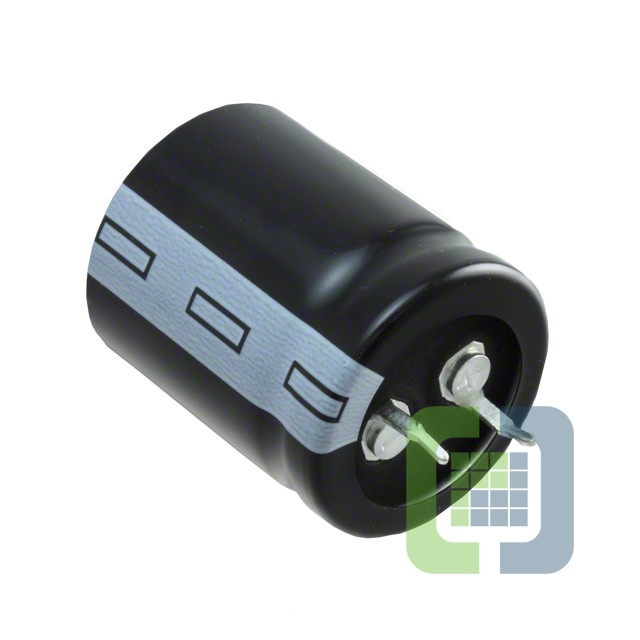

B43305F2477M80
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 250V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43305F2477M80 Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$3.12858
- 260$3.12858
Quote It
Technical Details
- Series:B43305
- Package:Bulk
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):270mOhm @ 100Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.87 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:370 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):1.260" (32.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
