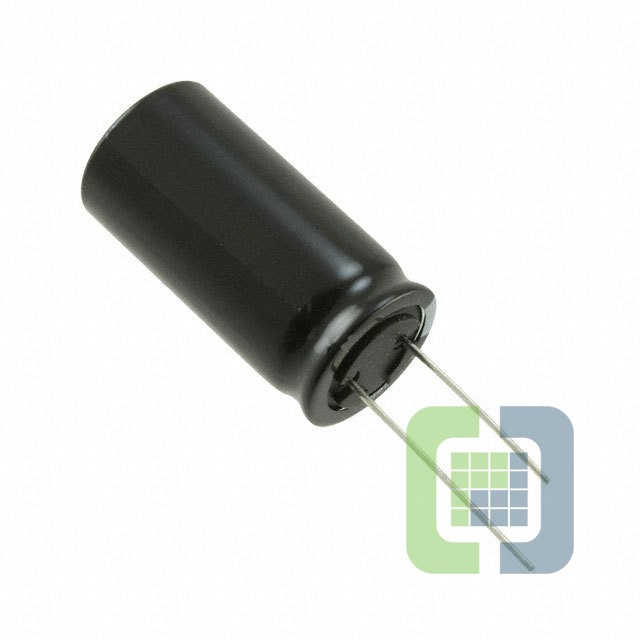

80ZLJ1200MGC18X40
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1200UF 20% 80V RADIAL
- CategoryAluminum Electrolytic Capacitors
- Datasheet 80ZLJ1200MGC18X40 Datasheet
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
- 1$3.1496
- 200$3.00642
Quote It
Technical Details
- Series:ZLJ
- Package:Tape & Box (TB)
- Part Status:Active
- Capacitance:1200 µF
- Tolerance:±20%
- Voltage - Rated:80 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:10000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.316 A @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:26 mOhms
- Lead Spacing:0.295" (7.50mm)
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):1.654" (42.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
