ELXM161VSN561MP35S
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant

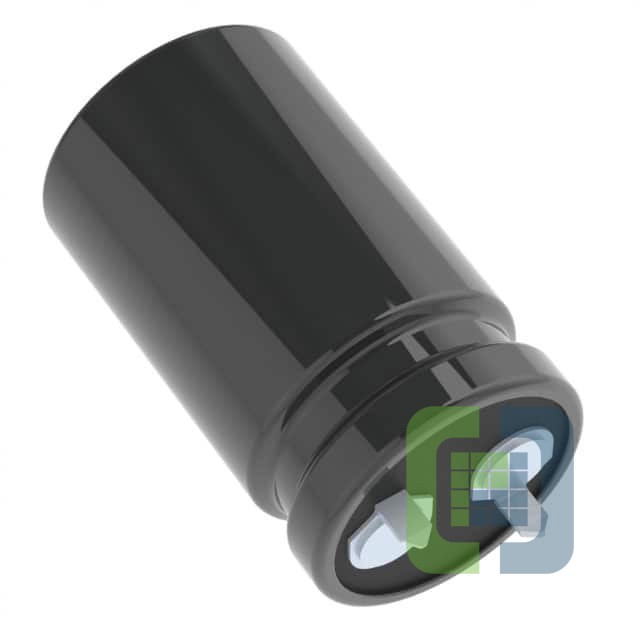

- DescriptionCAP ALUM 560UF 20% 160V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet ELXM161VSN561MP35S Datasheet
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
- 1$3.15765
- 200$2.363
Quote It
Technical Details
- Series:LXM
- Package:Bulk
- Part Status:Active
- Capacitance:560 µF
- Tolerance:±20%
- Voltage - Rated:160 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:7000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.55 A @ 120 Hz
- Ripple Current @ High Frequency:2.325 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.866" Dia (22.00mm)
- Height - Seated (Max):1.457" (37.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
