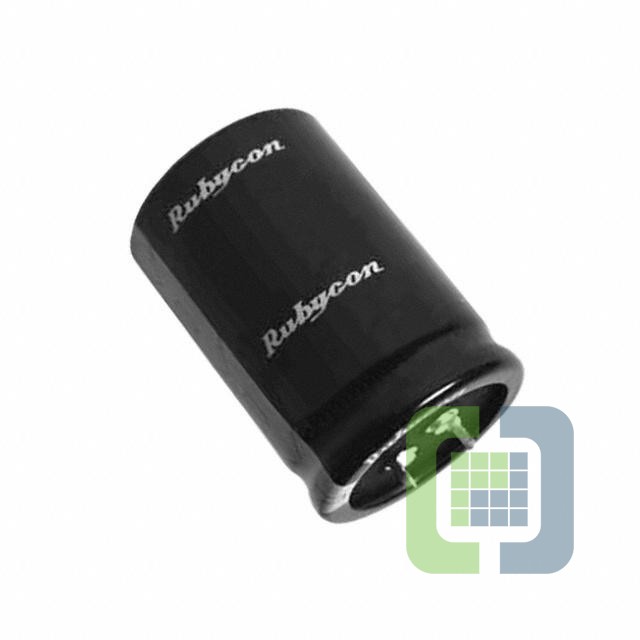

400MXK180MEFCSN25X25
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 180UF 20% 400V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 400MXK180MEFCSN25X25 Datasheet
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$3.16765
- 10$2.84874
- 200$2.15229
- 600$1.77248
- 1,000$1.64588
- 2,600$1.61423
Quote It
Technical Details
- Series:MXK
- Package:Tray
- Part Status:Active
- Capacitance:180 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.15 A @ 120 Hz
- Ripple Current @ High Frequency:1.61 A @ 10 kHz
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:0.984" Dia (25.00mm)
- Height - Seated (Max):1.063" (27.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
