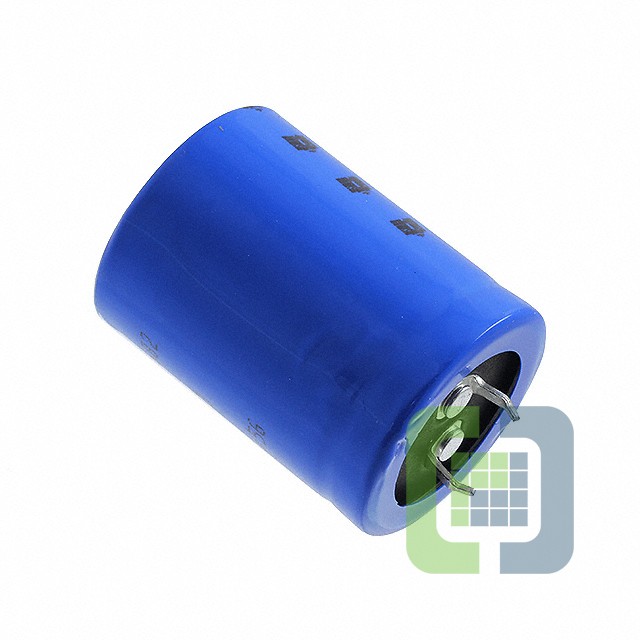

MAL215888562E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 5600UF 20% 63V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL215888562E3 Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
- 1$9.00743
- 600$8.772
Quote It
Technical Details
- Series:158 PUL-SI
- Package:Bulk
- Part Status:Active
- Capacitance:5600 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):59mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.97 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:47 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.457" (37.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 3 Lead
