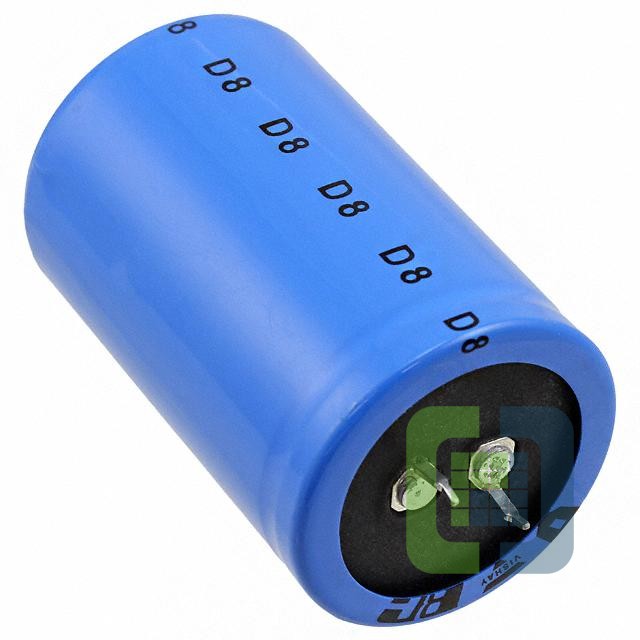

MAL215969331E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 330UF 20% 500V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL215969331E3 Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$9.16103
- 600$8.9216
Quote It
Technical Details
- Series:159 PUL-SI
- Package:Bulk
- Part Status:Active
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:500 V
- ESR (Equivalent Series Resistance):380mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:1.74 A @ 120 Hz
- Ripple Current @ High Frequency:-
- Impedance:270 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.850" (47.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
