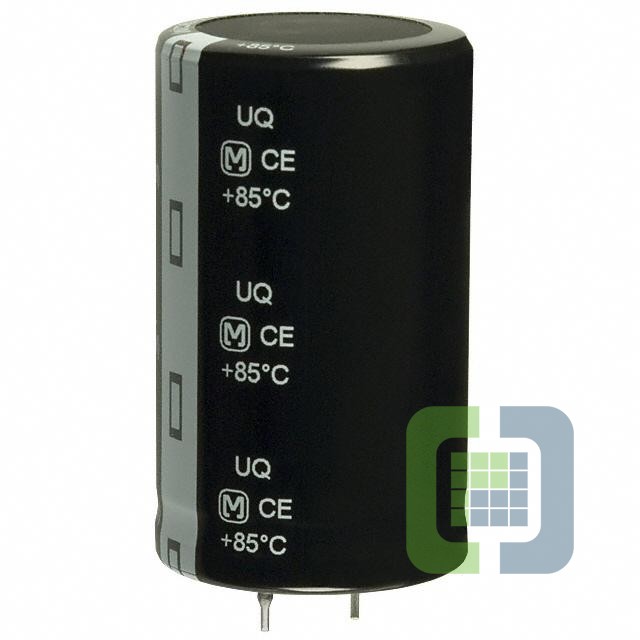

EET-UQ2V821DA
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 820UF 20% 350V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet EET-UQ2V821DA Datasheet
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$9.83
Quote It
Technical Details
- Series:TS-UQ
- Package:Bulk
- Part Status:Obsolete
- Capacitance:820 µF
- Tolerance:±20%
- Voltage - Rated:350 V
- ESR (Equivalent Series Resistance):243mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:3.25 A @ 120 Hz
- Ripple Current @ High Frequency:4.55 A @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:1.181" Dia (30.00mm)
- Height - Seated (Max):1.969" (50.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
