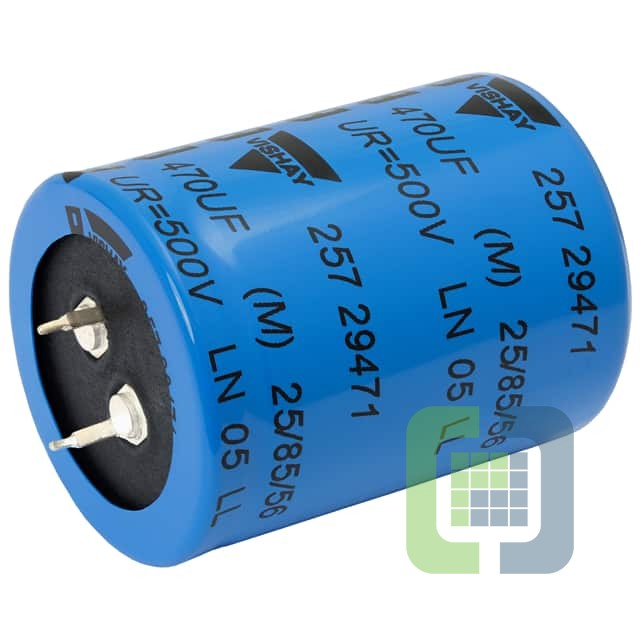

MAL225719471E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 500V 5000H
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
- 1$9.8553
Quote It
Technical Details
- Series:257 PRM-SI
- Package:Box
- Part Status:Active
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:500 V
- ESR (Equivalent Series Resistance):480mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.55 A @ 100 Hz
- Ripple Current @ High Frequency:3.57 A @ 10 kHz
- Impedance:420 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):1.850" (47.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 3 Lead
