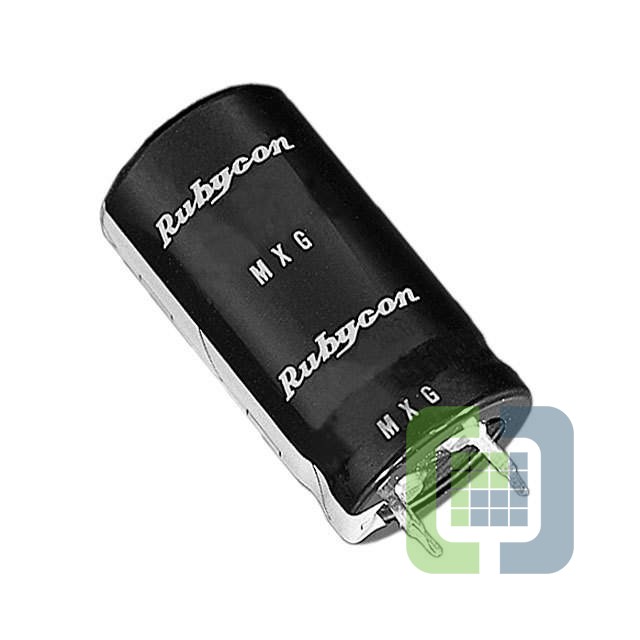

450MXG680MEFCSN35X50
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 680UF 20% 450V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet 450MXG680MEFCSN35X50 Datasheet
-
ECAD Model
- Share
In Stock: 138
Can ship immediately
Pricing:
- 1$10.2304
- 100$10.2304
Quote It
Technical Details
- Series:MXG
- Package:Bulk
- Part Status:Active
- Capacitance:680 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:-
- Impedance:-
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):2.047" (52.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In
