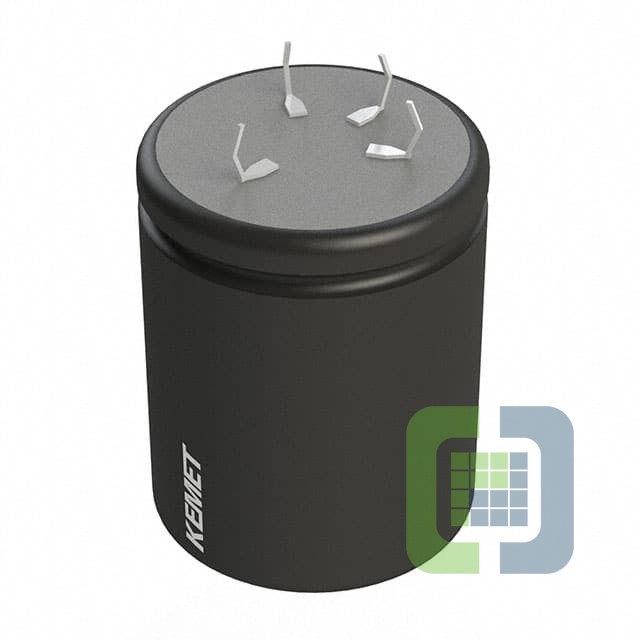

ALC80C114EL025
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSNAP-IN HIGH CV 105C 110000UF 25
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 142
Can ship immediately
Pricing:
- 1$10.24852
- 216$10.24852
Quote It
Technical Details
- Series:ALC80
- Package:Bulk
- Part Status:Active
- Capacitance:110000 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):16mOhm @ 100Hz
- Lifetime @ Temp.:9000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:13.66 A @ 100 Hz
- Ripple Current @ High Frequency:14.88 A @ 10 kHz
- Impedance:15 mOhms
- Lead Spacing:0.886" (22.50mm)
- Size / Dimension:1.575" Dia (40.00mm)
- Height - Seated (Max):3.228" (82.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 4 Lead
