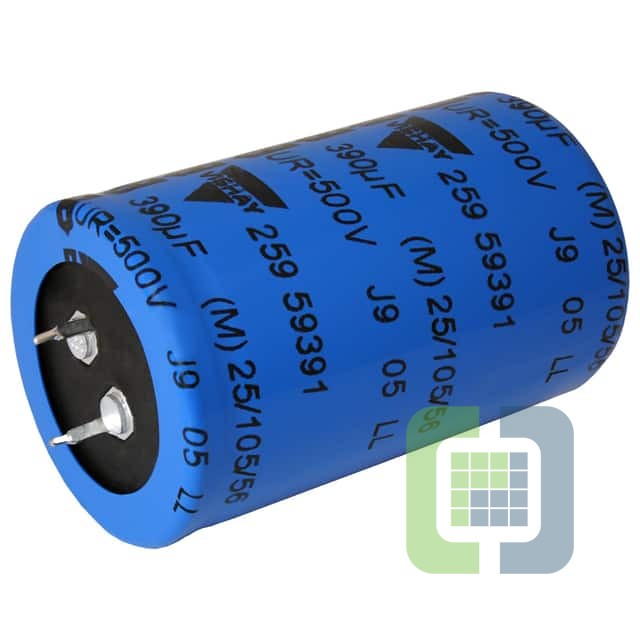

MAL225919391E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 390UF 500V 3000H
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
- 1$10.5735
Quote It
Technical Details
- Series:259 PHM-SI
- Package:Box
- Part Status:Active
- Capacitance:390 µF
- Tolerance:±20%
- Voltage - Rated:500 V
- ESR (Equivalent Series Resistance):360mOhm @ 100Hz
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.42 A @ 100 Hz
- Ripple Current @ High Frequency:3.63 A @ 10 kHz
- Impedance:270 mOhms
- Lead Spacing:0.394" (10.00mm)
- Size / Dimension:1.378" Dia (35.00mm)
- Height - Seated (Max):2.047" (52.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 3 Lead
