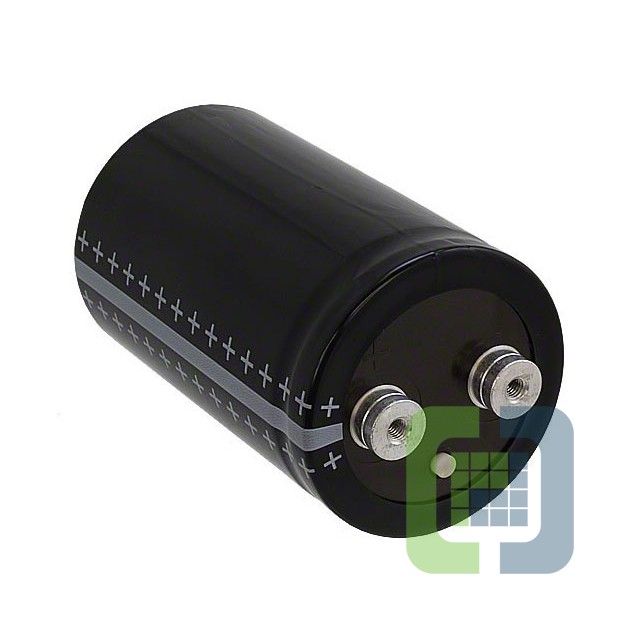

B41580A7150M000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 150000UF 20% 40V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet B41580A7150M000 Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$72.60438
- 32$72.60438
Quote It
Technical Details
- Series:B41580
- Package:Bulk
- Part Status:Active
- Capacitance:150000 µF
- Tolerance:±20%
- Voltage - Rated:40 V
- ESR (Equivalent Series Resistance):7.2mOhm @ 100Hz
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:20 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:6 mOhms
- Lead Spacing:1.248" (31.70mm)
- Size / Dimension:3.028" Dia (76.90mm)
- Height - Seated (Max):4.201" (106.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
