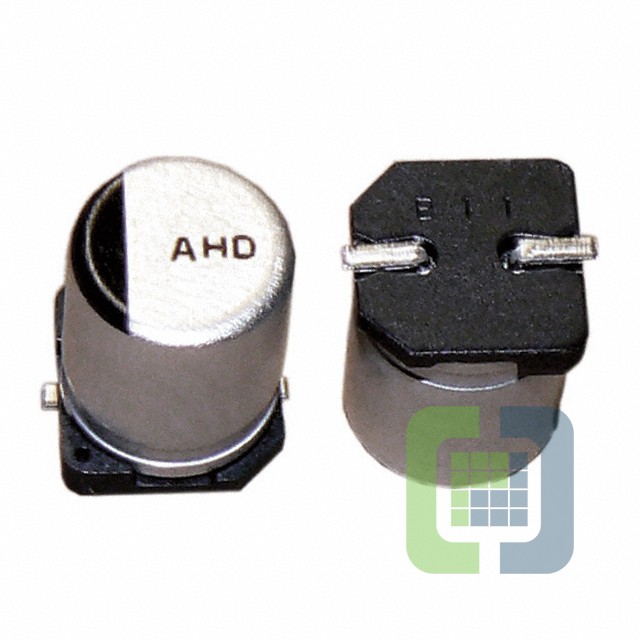

AHD226M63F24T
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 63V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AHD226M63F24T Datasheet
-
ECAD Model
- Share
In Stock: 160
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AHD
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):13.6Ohm @ 120Hz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:65 mA @ 120 Hz
- Ripple Current @ High Frequency:110.5 mA @ 10 kHz
- Impedance:1.5 Ohms
- Lead Spacing:-
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.402" (10.20mm)
- Surface Mount Land Size:0.327" L x 0.327" W (8.30mm x 8.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
