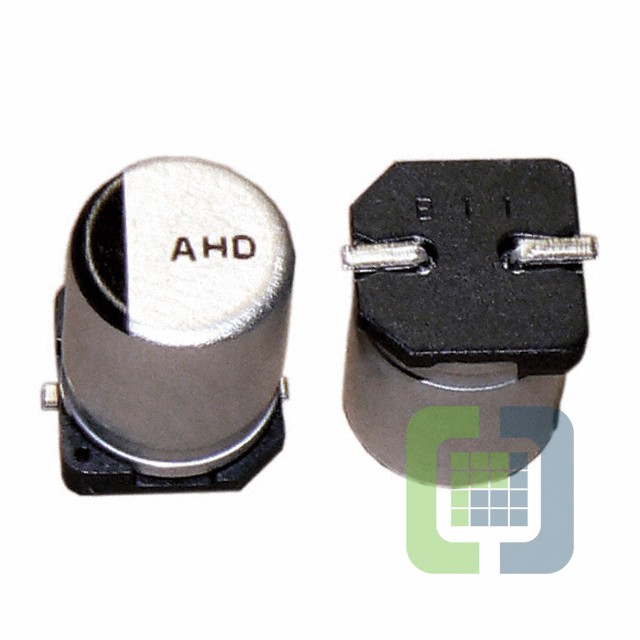

AHD335M50B12B
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 3.3UF 20% 50V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AHD335M50B12B Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AHD
- Package:Bulk
- Part Status:Obsolete
- Capacitance:3.3 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):60.3Ohm @ 120Hz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:16 mA @ 120 Hz
- Ripple Current @ High Frequency:27.2 mA @ 10 kHz
- Impedance:12 Ohms
- Lead Spacing:-
- Size / Dimension:0.157" Dia (4.00mm)
- Height - Seated (Max):0.228" (5.80mm)
- Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
