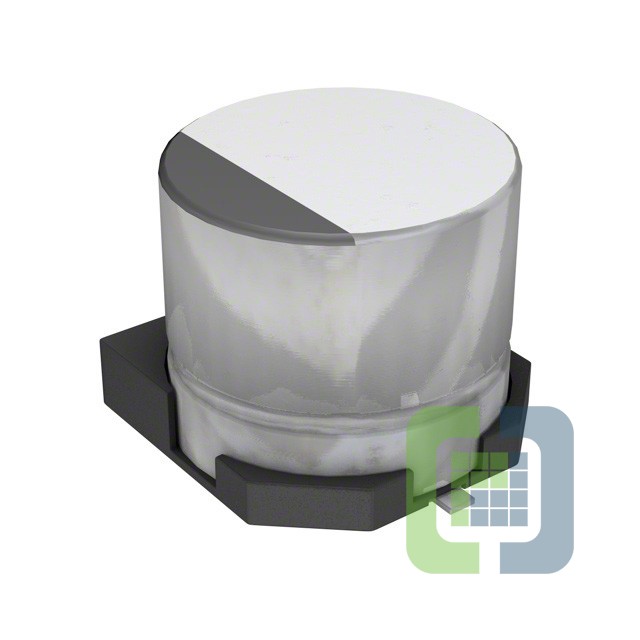

AVS476M25D16B-F
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 47UF 20% 25V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AVS476M25D16B-F Datasheet
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AVS
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Capacitance:47 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):7.1Ohm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, Bypass, Decoupling
- Ripple Current @ Low Frequency:70 mA @ 120 Hz
- Ripple Current @ High Frequency:119 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.213" (5.40mm)
- Surface Mount Land Size:0.260" L x 0.260" W (6.60mm x 6.60mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
