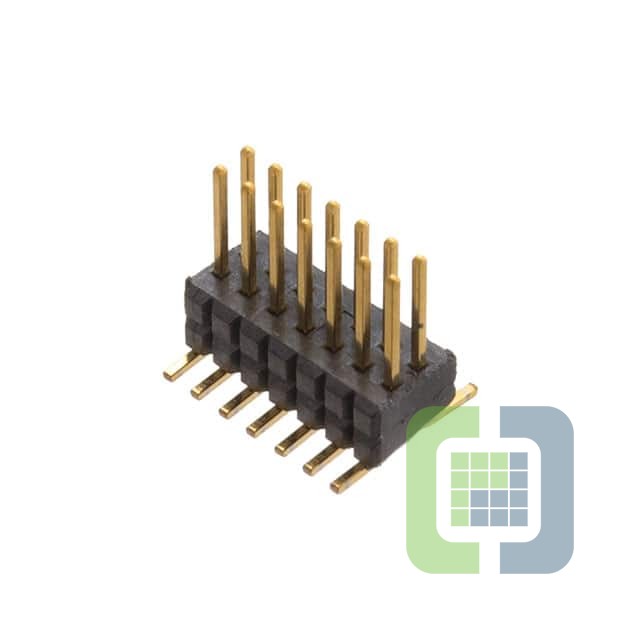

MW-07-03-H-D-095-144
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 14POS 0.039 STACK SMD
- CategoryRectangular Connectors - Board Spacers, Stackers (Board to Board)
- Datasheet MW-07-03-H-D-095-144 Datasheet
-
ECAD Model
- Share
In Stock: 262
Can ship immediately
Pricing:
- 1$6.21
- 83$4.90626
Quote It
Technical Details
- Series:Flex Stack, MW
- Package:Tube
- Part Status:Active
- Number of Positions:14
- Pitch:0.039" (1.00mm)
- Number of Rows:2
- Row Spacing:0.039" (1.00mm)
- Length - Overall Pin:0.240" (6.096mm)
- Length - Post (Mating):0.095" (2.413mm)
- Length - Stack Height:0.095" (2.413mm)
- Length - Tail:-
- Mounting Type:Surface Mount
- Termination:Solder
- Contact Finish - Post (Mating):Gold
- Contact Finish Thickness - Post (Mating):30.0µin (0.76µm)
- Color:Black
