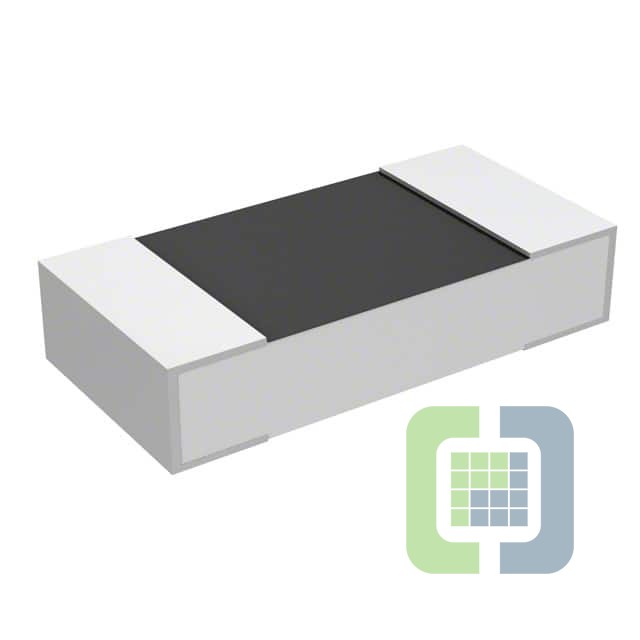

TL2BR022F
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.022 OHM 1% 1/4W 1206
- CategoryChip Resistor - Surface Mount
- Datasheet TL2BR022F Datasheet
-
ECAD Model
- Share
In Stock: 3,708
Can ship immediately
Pricing:
- 1$1.41
- 4,000$0.55031
- 8,000$0.53973
- 12,000$0.52703
Quote It
Technical Details
- Series:TL, CGS
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:22 mOhms
- Tolerance:±1%
- Power (Watts):0.25W, 1/4W
- Composition:Metal Foil
- Features:Current Sense
- Temperature Coefficient:±75ppm/°C
- Operating Temperature:-65°C ~ 170°C
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Ratings:-
- Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
- Height - Seated (Max):0.024" (0.60mm)
- Number of Terminations:2
- Failure Rate:-
