- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT HSNG MALE 18POS PNL MT
- CategoryCircular Connectors - Housings
- Datasheet HDP24-24-18PN Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$18.18
- 10$16.88143
- 25$15.15
- 50$14.71714
- 100$12.98571
- 250$12.12
- 500$11.86029
Quote It
Technical Details
- Series:HDP20
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle Housing
- Type:For Male Pins
- Number of Positions:18
- Shell Size - Insert:24-18
- Shell Size, MIL:-
- Contact Type:Crimp
- Contact Size:8 (1), 12 (3), 16 (14)
- Mounting Type:Panel Mount
- Mounting Feature:Bulkhead - Front Side Nut
- Fastening Type:Bayonet Lock
- Orientation:Keyed
- Shell Material:Polyamide (PA66), Nylon 6/6, Glass Filled
- Shell Finish:-
- Housing Color:Black
- Ingress Protection:IP68 - Dust Tight, Waterproof
- Material Flammability Rating:UL94 V-1
- Features:Dust Cap
- Shielding:Unshielded
Related Products
RCPT, SIZE 24, HDP, -L024
- 1: $19.58000
- 200: $12.02281

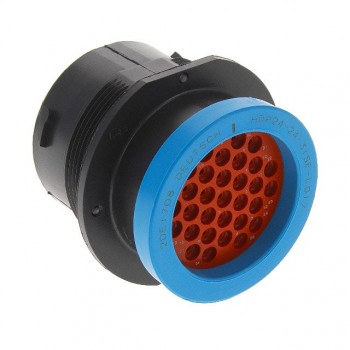

CONN RCPT HSG FMALE 31POS PNL MT
