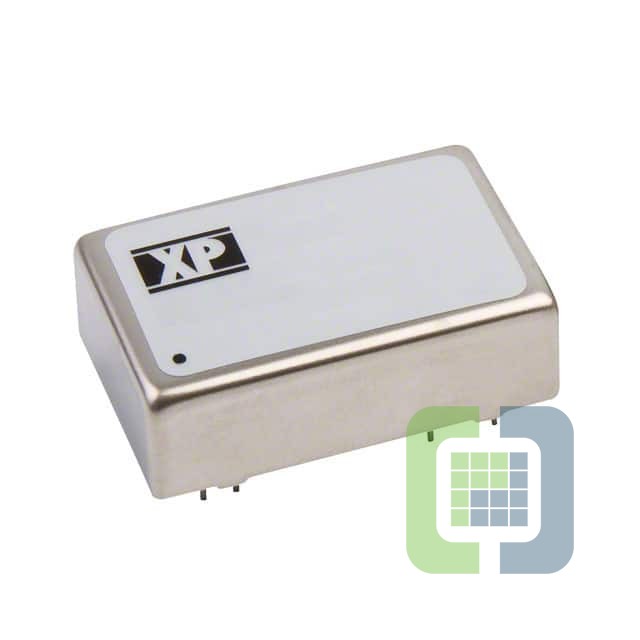

JCJ0848D12
XP Power
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDC DC CONVERTER +/-12V 8W
- CategoryDC DC Converters
- Datasheet JCJ0848D12 Datasheet
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
- 1$23.5
- 10$23.5
Quote It
Technical Details
- Series:JCJ (8W)
- Package:Tube
- Part Status:Active
- Type:Isolated Module
- Number of Outputs:2
- Voltage - Input (Min):36V
- Voltage - Input (Max):75V
- Voltage - Output 1:12V
- Voltage - Output 2:-12V
- Voltage - Output 3:-
- Voltage - Output 4:-
- Current - Output (Max):335mA, 335mA
- Power (Watts):8 W
- Voltage - Isolation:1.5 kV
- Applications:ITE (Commercial)
- Features:OCP, OVP, SCP
- Operating Temperature:-40°C ~ 100°C
- Efficiency:85%
- Mounting Type:Through Hole
- Package / Case:11-DIP Module, 8 Leads
- Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
- Supplier Device Package:-
- Control Features:-
- Approval Agency:-
- Standard Number:62368-1
