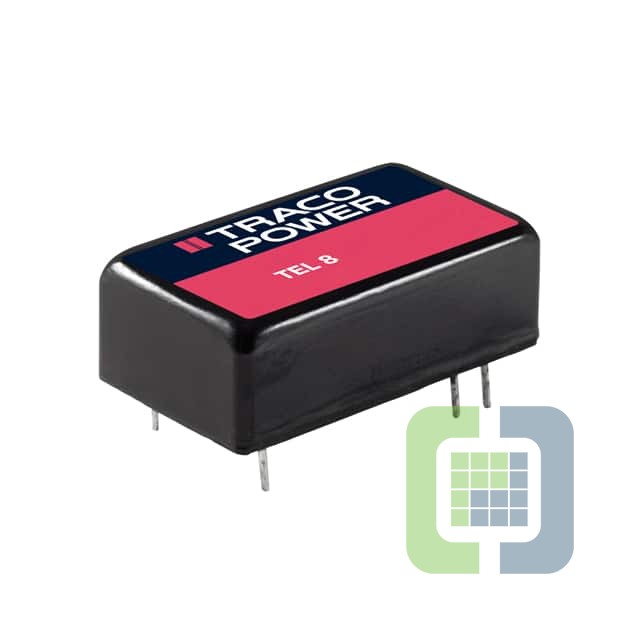

TEL 8-1223

Technical Details

• Series:TEL 8 (8W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):9V
• Voltage - Input (Max):18V
• Voltage - Output 1:15V
• Voltage - Output 2:-15V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):265mA, 265mA
• Power (Watts):8 W

• Voltage - Isolation:1.5 kV
• Applications:ITE (Commercial)
• Features:SCP
• Operating Temperature:-40°C ~ 80°C
• Efficiency:84%
• Mounting Type:Through Hole
• Package / Case:16-DIP Module, 6 Leads
• Size / Dimension:0.95" L x 0.55" W x 0.33" H (24.1mm x 14.0mm x 8.5mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
