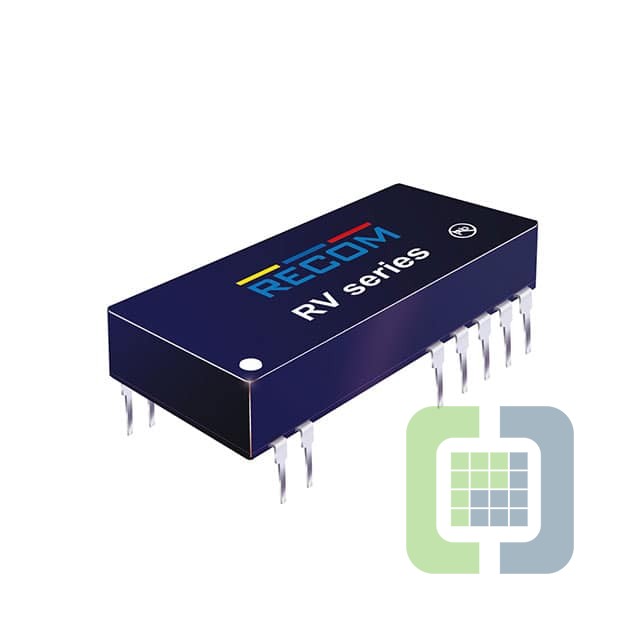

RV-1509D/R6.4

Technical Details

• Series:ECONOLINE RV/R (2W)
• Package:Tube
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):13.5V
• Voltage - Input (Max):16.5V
• Voltage - Output 1:9V
• Voltage - Output 2:-9V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):111mA, 111mA
• Power (Watts):2 W

• Voltage - Isolation:6.4 kV
• Applications:ITE (Commercial), Medical
• Features:-
• Operating Temperature:-40°C ~ 85°C
• Efficiency:84%
• Mounting Type:Through Hole
• Package / Case:24-DIP Module, 14 Leads
• Size / Dimension:1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
