In Stock: 173

Can ship immediately

Pricing:
  • 1$0.92
  • 10$0.81955
  • 100$0.71535
  • 500$0.5961
  • 1,000$0.53649
  • 5,000$0.47688
  • 10,000$0.45602

Quote It

Technical Details

  • Series:Grace Inertia, GIC
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:0.312" (7.92mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.571" (14.50mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-30°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Green
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:300VAC

Related Products


1-1747052-3

CONN HEADER VERT 2POS 7.92MM

1-1747052-3 Datasheet
  • 1: $0.92000
  • 10: $0.81955
  • 100: $0.71535

M20-9992545

CONN HEADER VERT 25POS 2.54MM

M20-9992545 Datasheet
  • 1: $0.92000
  • 1000: $0.47840

3-1747052-3

CONN HEADER VERT 2POS 7.92MM

3-1747052-3 Datasheet
  • 1: $0.92000
  • 10: $0.81955
  • 100: $0.71535

1747052-4

CONN HEADER VERT 2POS 7.92MM

1747052-4 Datasheet
  • 1: $0.92000
  • 10: $0.81955
  • 100: $0.71525

1-1747052-5

CONN HEADER VERT 2POS 7.92MM

1-1747052-5 Datasheet
  • 1: $0.92000
  • 10: $0.81955
  • 100: $0.71535

917722-4

CONN HEADER VERT 2POS 2.5MM

917722-4 Datasheet
  • 1: $0.92000
  • 10: $0.82242
  • 100: $0.71788

5-146268-4

CONN HEADER VERT 8POS 2.54MM

5-146268-4 Datasheet
  • 1: $0.93000
  • 10: $0.82078
  • 100: $0.70842

2029151-5

CONN HEADER R/A 5POS 4.2MM

2029151-5 Datasheet
  • 1: $0.93000
  • 10: $0.83042
  • 100: $0.72465

665304124022

CONN HEADER SMD 4POS 1MM

  • 1: $0.93000
  • 1000: $0.68031

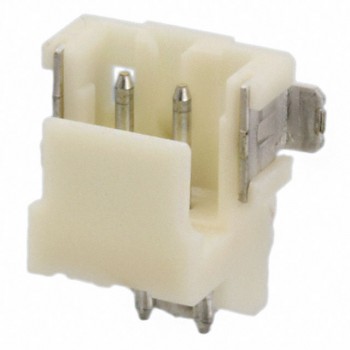

3-292173-2
