0537800370
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

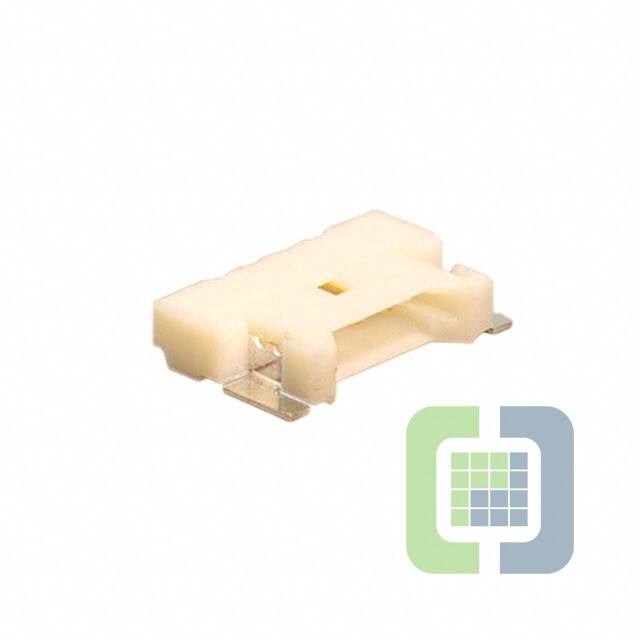

- DescriptionCONN HEADER SMD R/A 3POS 1.25MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0537800370 Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PanelMate 53780
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:3
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.102" (2.60mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.073" (1.85mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:8.00µin (0.203µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyphenylene Sulfide (PPS)
- Features:Solder Retention
- Operating Temperature:-40°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:125V
