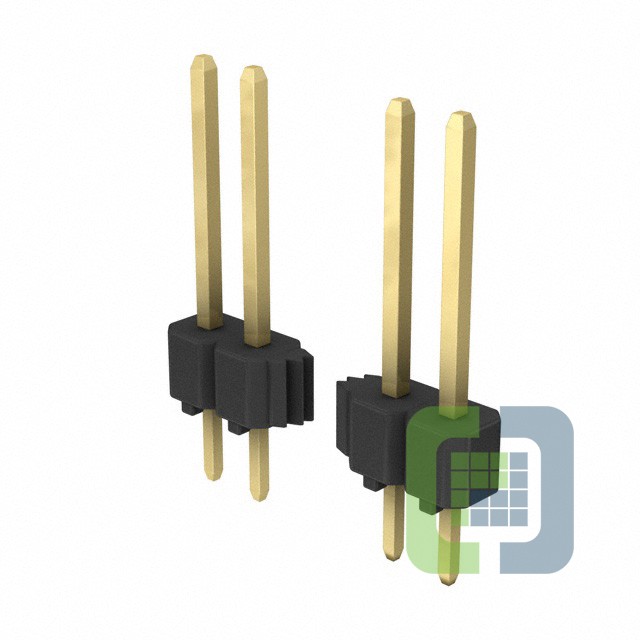

MDF7-20P-2.54DSA(01)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 20POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet MDF7-20P-2.54DSA(01) Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$2.44
- 100$2.44
Quote It
Technical Details
- Series:MDF7
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:20
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.394" (10.00mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:0.612" (15.54mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:-
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-35°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:250V
