BBD-135-G-B

Samtec, Inc.

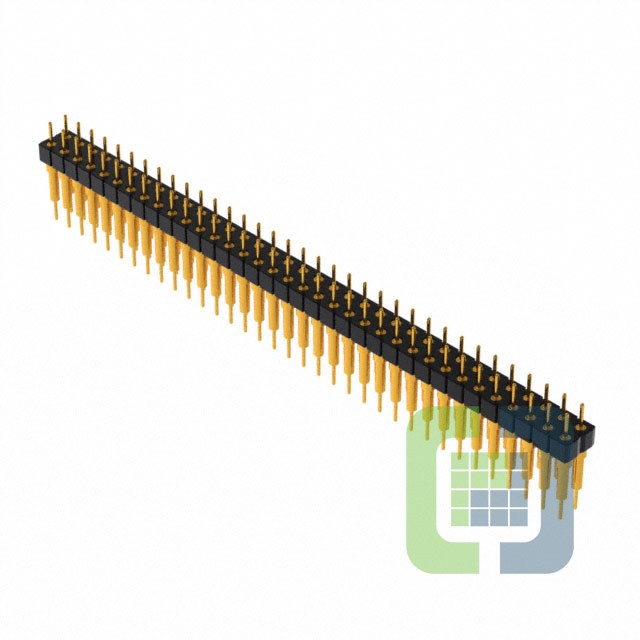

BBD-135-G-B Gallery image caption
In Stock: 344

Can ship immediately

Pricing:
  • 1$26.03

Quote It

Technical Details

  • Series:BBD
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:70
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.125" (3.18mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.585" (14.86mm)
  • Insulation Height:0.335" (8.51mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:20.0µin (0.51µm)
  • Contact Finish - Post:Nickel
  • Contact Material:-
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
