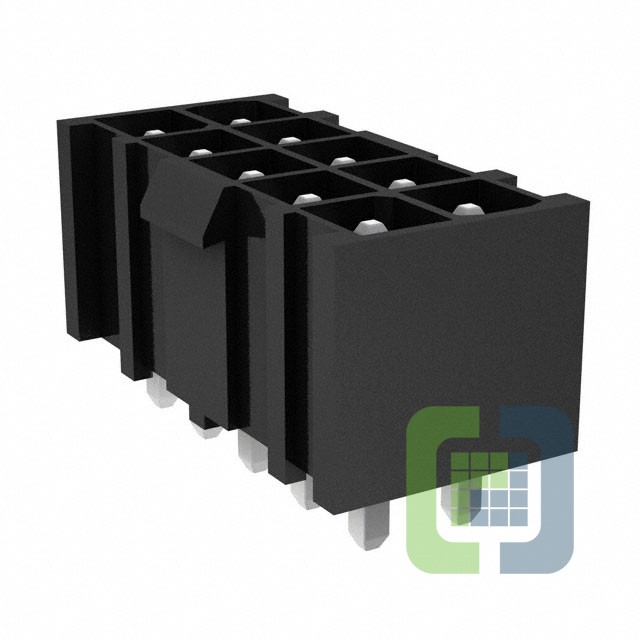

IPBT-105-H1-T-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 10POS 4.2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet IPBT-105-H1-T-D Datasheet
-
ECAD Model
- Share
In Stock: 735
Can ship immediately
Pricing:
- 1$2.45
- 25$2.08425
- 100$1.90291
- 500$1.58578
- 1,000$1.35923
- 5,000$1.20518
Quote It
Technical Details
- Series:Power Mate® IPBT
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.165" (4.20mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.165" (4.20mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:0.260" (6.60mm)
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:0.510" (12.95mm)
- Insulation Height:0.380" (9.65mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:400VAC, 565VDC
