PTT-105-01-L-D

Samtec, Inc.

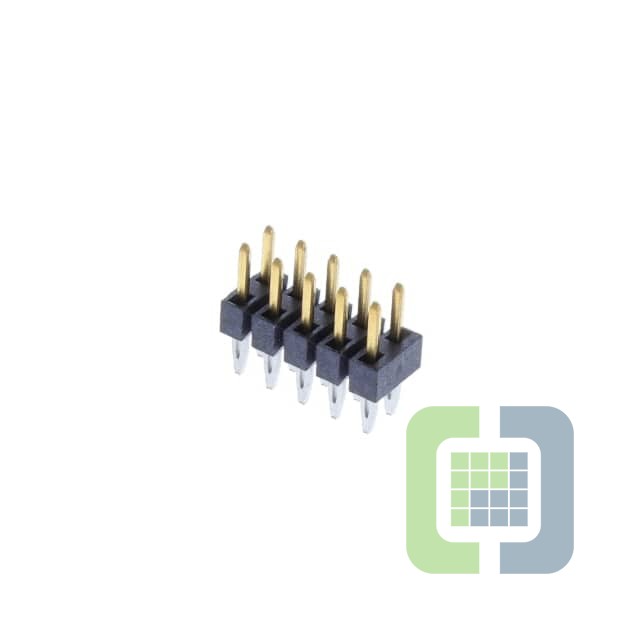

PTT-105-01-L-D Gallery image caption
In Stock: 648

Can ship immediately

Pricing:
  • 1$1.36
  • 10$1.19531
  • 100$1.03084
  • 500$0.84341
  • 1,000$0.7497
  • 5,000$0.65598
  • 10,000$0.62319

Quote It

Technical Details

  • Series:PTT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.126" (3.20mm)



  • Contact Length - Post:0.111" (2.82mm)
  • Overall Contact Length:0.316" (8.03mm)
  • Insulation Height:0.079" (2.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):2.9A per Contact
  • Voltage Rating:-
