TSW-114-18-G-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

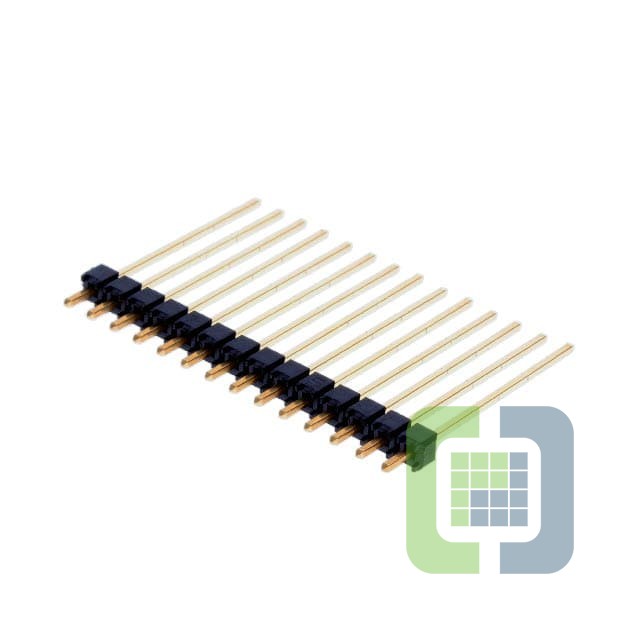

- DescriptionCONN HEADER VERT 14POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TSW-114-18-G-S Datasheet
-
ECAD Model
- Share
In Stock: 439
Can ship immediately
Pricing:
- 1$1.88
- 10$1.70748
- 100$1.46308
- 500$1.21923
- 1,000$1.04506
- 5,000$0.92662
- 10,000$0.90572
Quote It
Technical Details
- Series:TSW
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:14
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.720" (18.29mm)
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:0.930" (23.62mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Phosphor Bronze
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
