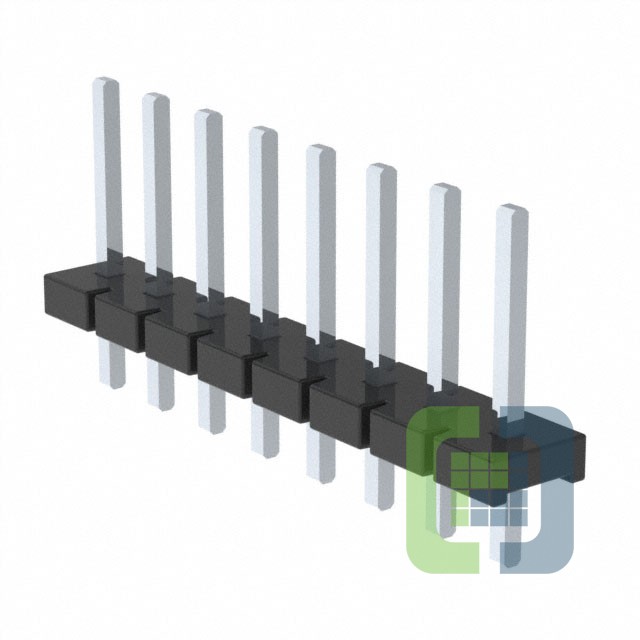

HPM-08-01-T-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 8POS 5.08MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet HPM-08-01-T-S Datasheet
-
ECAD Model
- Share
In Stock: 256
Can ship immediately
Pricing:
- 1$2.43
- 10$2.01187
- 100$1.50922
- 500$1.25769
- 1,000$1.11515
- 5,000$1.04808
- 10,000$1.02711
Quote It
Technical Details
- Series:HPM
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.200" (5.08mm)
- Number of Positions:8
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.470" (11.94mm)
- Contact Length - Post:0.180" (4.57mm)
- Overall Contact Length:0.750" (19.05mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polyester, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:850VAC, 1200VDC
