TFM-104-02-L-D

Samtec, Inc.

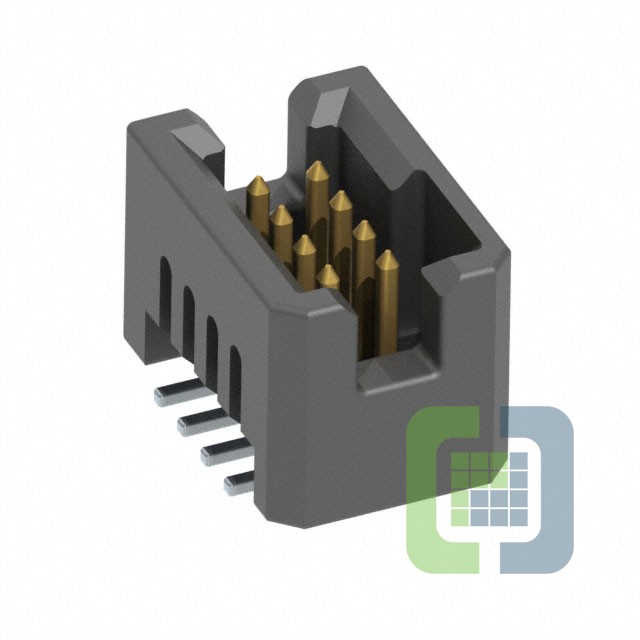

TFM-104-02-L-D Gallery image caption
In Stock: 539

Can ship immediately

Pricing:
  • 1$2.43
  • 10$2.20823
  • 100$1.89257
  • 500$1.57714
  • 1,000$1.35184
  • 5,000$1.19863
  • 10,000$1.17159

Quote It

Technical Details

  • Series:Tiger Eye™ TFM
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.131" (3.33mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.220" (5.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.9A per Contact
  • Voltage Rating:275VAC
