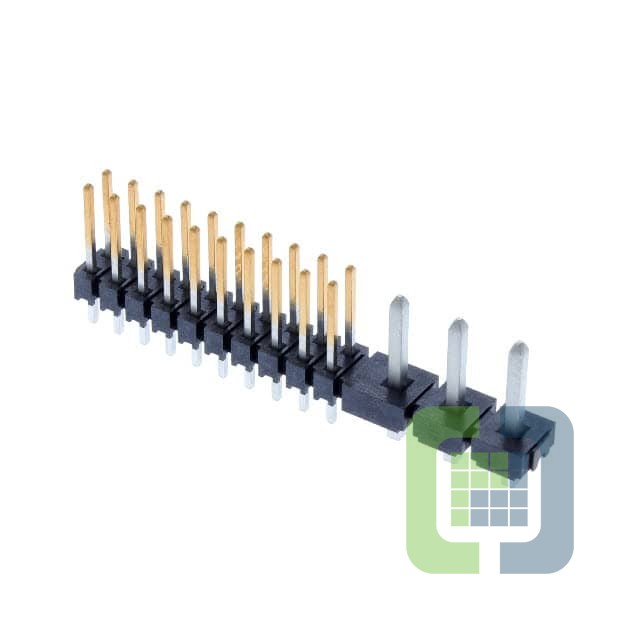

HPMC-110-03-L-D-03
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR .1" SIGNAL/PWR COMBO
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 199
Can ship immediately
Pricing:
- 1$7.64
Quote It
Technical Details
- Series:HPMC
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:-
- Number of Positions:23 (20 + 3 Power)
- Number of Rows:-
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.320" (8.13mm)
- Contact Length - Post:0.100" (2.54mm)
- Overall Contact Length:0.520" (13.21mm)
- Insulation Height:-
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Tin
- Contact Material:Beryllium Copper, Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:850VAC, 1200VDC
