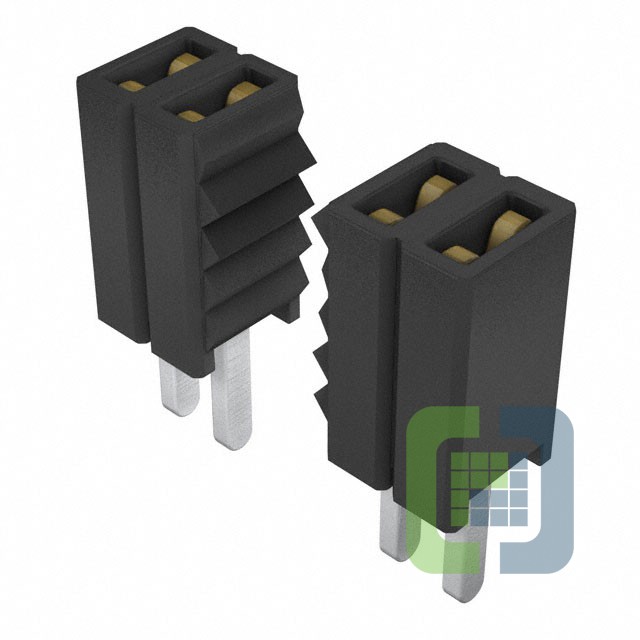

SLM-105-01-L-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 5POS 0.05 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SLM-105-01-L-S Datasheet
-
ECAD Model
- Share
In Stock: 817
Can ship immediately
Pricing:
- 1$0.91
- 10$0.75273
- 100$0.55787
- 500$0.44629
- 1,000$0.40445
- 5,000$0.35564
- 10,000$0.34867
Quote It
Technical Details
- Series:SLM
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board
- Number of Positions:5
- Number of Positions Loaded:All
- Pitch - Mating:0.050" (1.27mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Insulation Color:Black
- Insulation Height:0.180" (4.57mm)
- Contact Length - Post:0.115" (2.92mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
