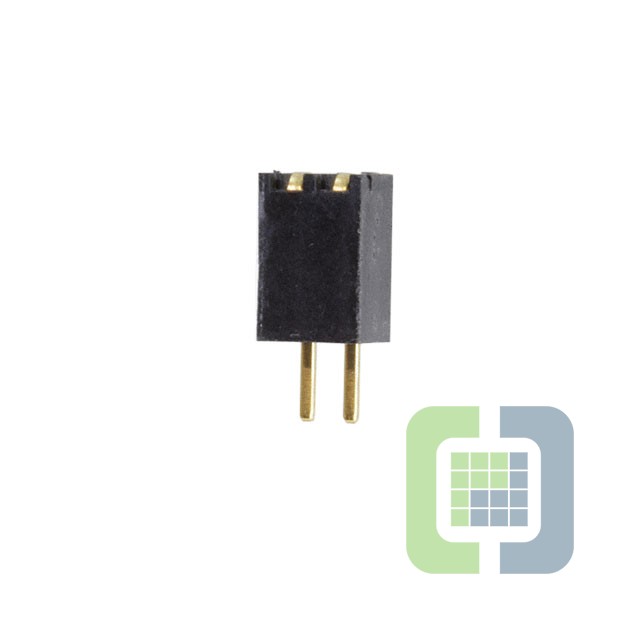

BSW-102-04-G-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 2POS 0.1 GOLD PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet BSW-102-04-G-S Datasheet
-
ECAD Model
- Share
In Stock: 1,107
Can ship immediately
Pricing:
- 1$1.03
- 10$0.90889
- 100$0.78439
- 500$0.64177
- 1,000$0.57046
- 5,000$0.49916
- 10,000$0.47419
Quote It
Technical Details
- Series:BSW
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle, Breakaway
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:2
- Number of Positions Loaded:All
- Pitch - Mating:0.100" (2.54mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole, Bottom Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Insulation Color:Black
- Insulation Height:0.350" (8.89mm)
- Contact Length - Post:0.170" (4.32mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
