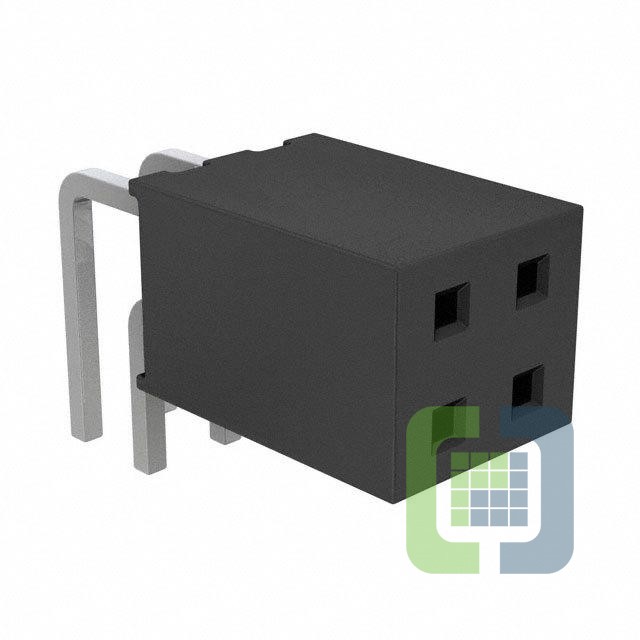

SQT-102-01-F-D-RA
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 4P 0.079 GOLD PCB R/A
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet SQT-102-01-F-D-RA Datasheet
-
ECAD Model
- Share
In Stock: 668
Can ship immediately
Pricing:
- 1$1.36
- 10$1.13061
- 100$0.83776
- 500$0.67021
- 1,000$0.60738
- 5,000$0.53408
- 10,000$0.5236
Quote It
Technical Details
- Series:SQT
- Package:Bulk
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Forked
- Style:Board to Board or Cable
- Number of Positions:4
- Number of Positions Loaded:All
- Pitch - Mating:0.079" (2.00mm)
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Insulation Color:Black
- Insulation Height:0.157" (4.00mm)
- Contact Length - Post:0.090" (2.29mm)
- Operating Temperature:-55°C ~ 125°C
- Material Flammability Rating:UL94 V-0
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):5.1A per Contact
- Voltage Rating:-
