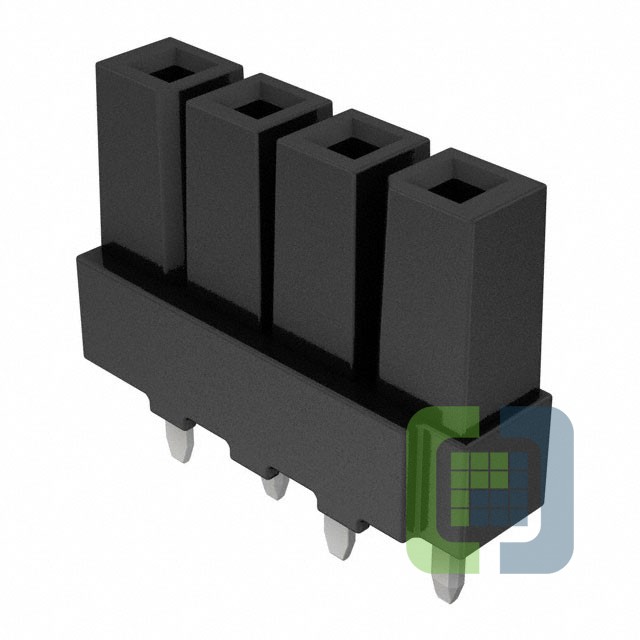

IPBS-104-01-T-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HDR 4POS 0.165 TIN PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet IPBS-104-01-T-S Datasheet
-
ECAD Model
- Share
In Stock: 214
Can ship immediately
Pricing:
- 1$2.02
- 10$1.83327
- 100$1.57102
- 500$1.30919
- 1,000$1.12216
- 5,000$0.99498
- 10,000$0.97254
Quote It
Technical Details
- Series:Power Mate® IPBS
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:4
- Number of Positions Loaded:All
- Pitch - Mating:0.165" (4.20mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.480" (12.20mm)
- Contact Length - Post:0.155" (3.94mm)
- Operating Temperature:-55°C ~ 105°C
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:400VAC, 565VDC
