HLE-103-02-L-DV-BE

Samtec, Inc.

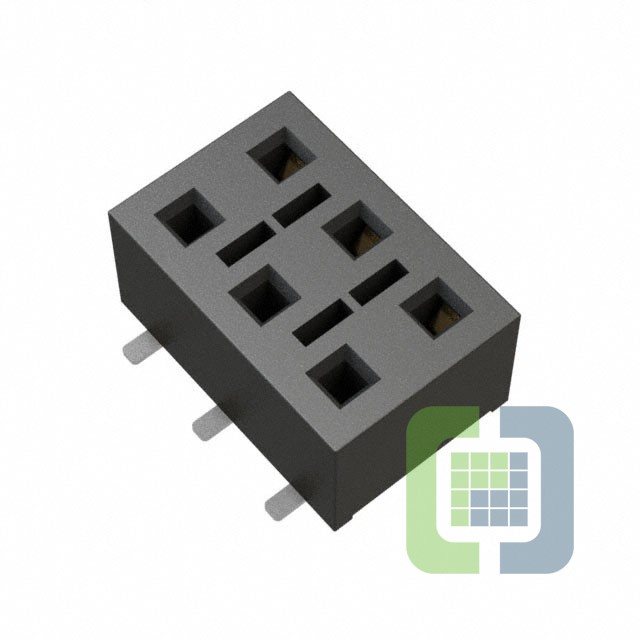

HLE-103-02-L-DV-BE Gallery image caption
In Stock: 215

Can ship immediately

Pricing:
  • 1$2.05
  • 74$1.41159
  • 148$1.27039
  • 518$1.05865
  • 1,036$0.93868
  • 5,032$0.88222
  • 10,064$0.86456

Quote It

Technical Details

  • Series:HLE
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle, Bottom Entry
  • Contact Type:Female Socket
  • Style:Board to Board
  • Number of Positions:6
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull



  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Insulation Color:Black
  • Insulation Height:0.144" (3.66mm)
  • Contact Length - Post:-
  • Operating Temperature:-55°C ~ 125°C
  • Material Flammability Rating:-
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:-
  • Current Rating (Amps):4.1A per Contact
  • Voltage Rating:400VAC
