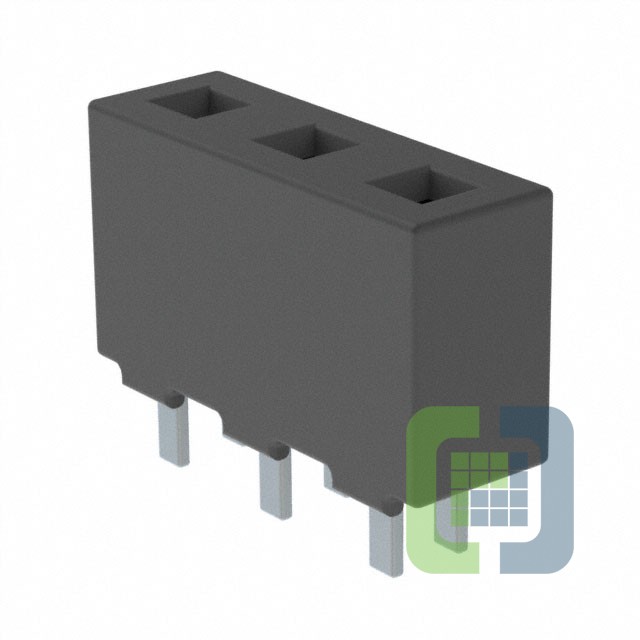

HPF-03-01-T-S
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN RCPT 3POS 0.2 TIN PCB
- CategoryRectangular Connectors - Headers, Receptacles, Female Sockets
- Datasheet HPF-03-01-T-S Datasheet
-
ECAD Model
- Share
In Stock: 485
Can ship immediately
Pricing:
- 1$2.37
- 37$1.84119
- 111$1.47306
- 518$1.22751
- 1,036$1.08839
- 5,032$1.02292
- 10,027$1.00247
Quote It
Technical Details
- Series:HPF
- Package:Tube
- Part Status:Active
- Connector Type:Receptacle
- Contact Type:Female Socket
- Style:Board to Board
- Number of Positions:3
- Number of Positions Loaded:All
- Pitch - Mating:0.200" (5.08mm)
- Number of Rows:1
- Row Spacing - Mating:-
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Insulation Color:Black
- Insulation Height:0.351" (8.92mm)
- Contact Length - Post:0.102" (2.60mm)
- Operating Temperature:-
- Material Flammability Rating:-
- Contact Finish - Post:Tin
- Mated Stacking Heights:-
- Ingress Protection:-
- Features:-
- Current Rating (Amps):-
- Voltage Rating:-
